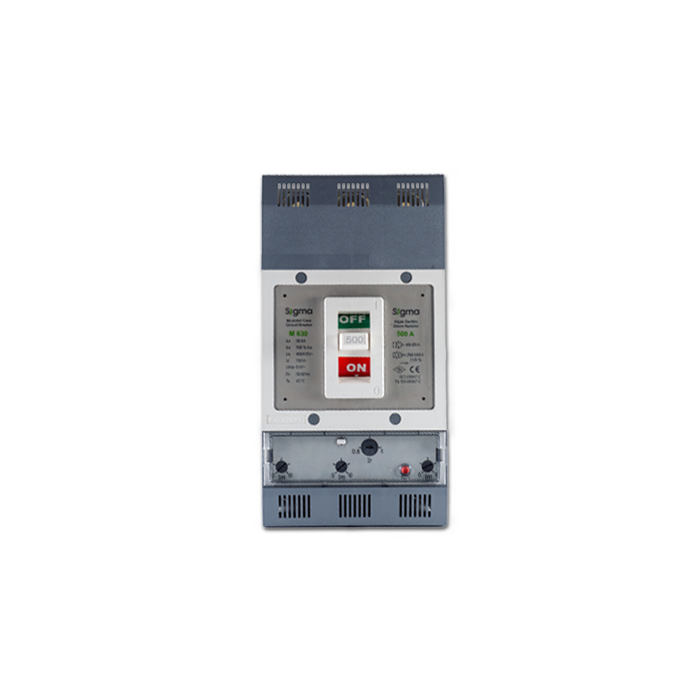

Moulded Case Circuit Breakers are produced according to IEC /EN 60947-2 and CE standards and used for protecting the circuits which have different characteristics like cable, motors, lighting, generators etc.

L.V MCCB fulfils 4 different functions:

• Close and Trip the circuit
• Protection against Overload
• Protection against Short Circuit Current
• Protection against Earth Leakage Current ( with the combination of Earth Leakage Relay and Torodial Transformer )

Main Features:

Rating From 25A- to 1600A
750v AC Rated Insulation Voltage
8kV Rated Impulse Withstand Voltage
1 and 3 poles
25, 36, 50 and 70kA Rated Ultimate Short-Circuit Breaking Capacity
Thermal and Magnetic Adjustment ( for 160A and above)
Wide Range of Accessories
Current Limiting (limitor property)
Silver Alloy Contacts
Covers and frames made by BMC which the Electrical and Mechanical life is high
Special production for protecting the different loads
Complies with EN 60947-2
